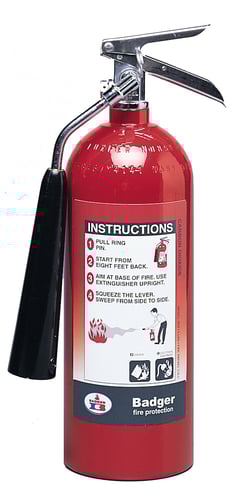

Carbon Dioxide Self-Expelling Fire Extinguisher
B5V-2A clean, effective extinguishing agent for Class B and C fires.
Heavy-duty chrome plated brass valve
Stainless steel handle, lever and hose band
Aluminum internal siphon tube
Six year warranty
Images are representative only.
Actual product may vary slightly.
Specifications
| Agent charge | Carbon Dioxide |
| Brackets included | VB-1 Optional |
| Cylinder | Steel |
| Diameter x height | 8.5 inches x 17 inches |
| Discharge range | 3.0 to 8.0 |
| Discharge time | 9 sec |
| Govt agency approved | USCG & DOT |
| Model | B5V-2 |
| Operating pressure | 850 |
| Single use or rechargeable | Rechargable |
| U l rating | 5-B:C |
| Unit weight average | 5 lb |
| Valve handle lever | Stainless Steel |
| Warranty | 6 year limited |
These quality industrial fire extinguisher models are extremely versatile and ready to tackle flammable liquid and electrical fire hazards. They are ideally suited for indoor applications where delicate equipment or processes require a clean extinguishing agent. Carbon Dioxide is an effective and clean gaseous extinguishing agent that does not leave any residue to clean up or damage equipment. These models are suitable for use on Class B and C fires.
- Heavy-duty chrome plated brass valve
- Stainless steel handle, lever and hose band
- Aluminum internal siphon tube
- Six year warranty
- Five year periodic hydrostatic test interval
- UL Listed and USCG Approved—Meets D.O.T.requirements
- Easy-to-read two-piece nameplate
- 5, 10, 15 and 20 pound models available
- DOT-3AL and TCM-3ALM specification cylinders
- Cylinders marked “Non-Shat” per Federal specification RR-C-901E
- 5# Models now also feature Insulated Discharge Horn for Added Operator Safety
Product Documentation
Specifications
| Agent charge | Carbon Dioxide |
| Brackets included | VB-1 Optional |
| Cylinder | Steel |
| Diameter x height | 8.5 inches x 17 inches |
| Discharge range | 3.0 to 8.0 |
| Discharge time | 9 sec |
| Govt agency approved | USCG & DOT |
| Model | B5V-2 |
| Operating pressure | 850 |
| Single use or rechargeable | Rechargable |
| U l rating | 5-B:C |
| Unit weight average | 5 lb |
| Valve handle lever | Stainless Steel |
| Warranty | 6 year limited |
Product Documentation
These quality industrial fire extinguisher models are extremely versatile and ready to tackle flammable liquid and electrical fire hazards. They are ideally suited for indoor applications where delicate equipment or processes require a clean extinguishing agent. Carbon Dioxide is an effective and clean gaseous extinguishing agent that does not leave any residue to clean up or damage equipment. These models are suitable for use on Class B and C fires.
- Heavy-duty chrome plated brass valve
- Stainless steel handle, lever and hose band
- Aluminum internal siphon tube
- Six year warranty
- Five year periodic hydrostatic test interval
- UL Listed and USCG Approved—Meets D.O.T.requirements
- Easy-to-read two-piece nameplate
- 5, 10, 15 and 20 pound models available
- DOT-3AL and TCM-3ALM specification cylinders
- Cylinders marked “Non-Shat” per Federal specification RR-C-901E
- 5# Models now also feature Insulated Discharge Horn for Added Operator Safety
BADGER EXTRA
Badger Extra fire extinguishers contain premium hardware features. They are ideal for tackling many fire risks typically found in commercial, industrial and domestic applications. Badger Extra models offer compliance and protection with premium features.
ABOUT BADGER FIRE
Badger fire protection products have been manufactured for more than 100 years. Located in Mebane, North Carolina, Badger offers a comprehensive range of industrial-grade fire extinguishers, dry chemical fire suppression systems and Range Guard®, the nation’s first commercial kitchen wet chemical fire suppression system. Badger designs and manufactures industrial-grade fire extinguishers that solve customer challenges while setting the standard in fire protection performance and value.
