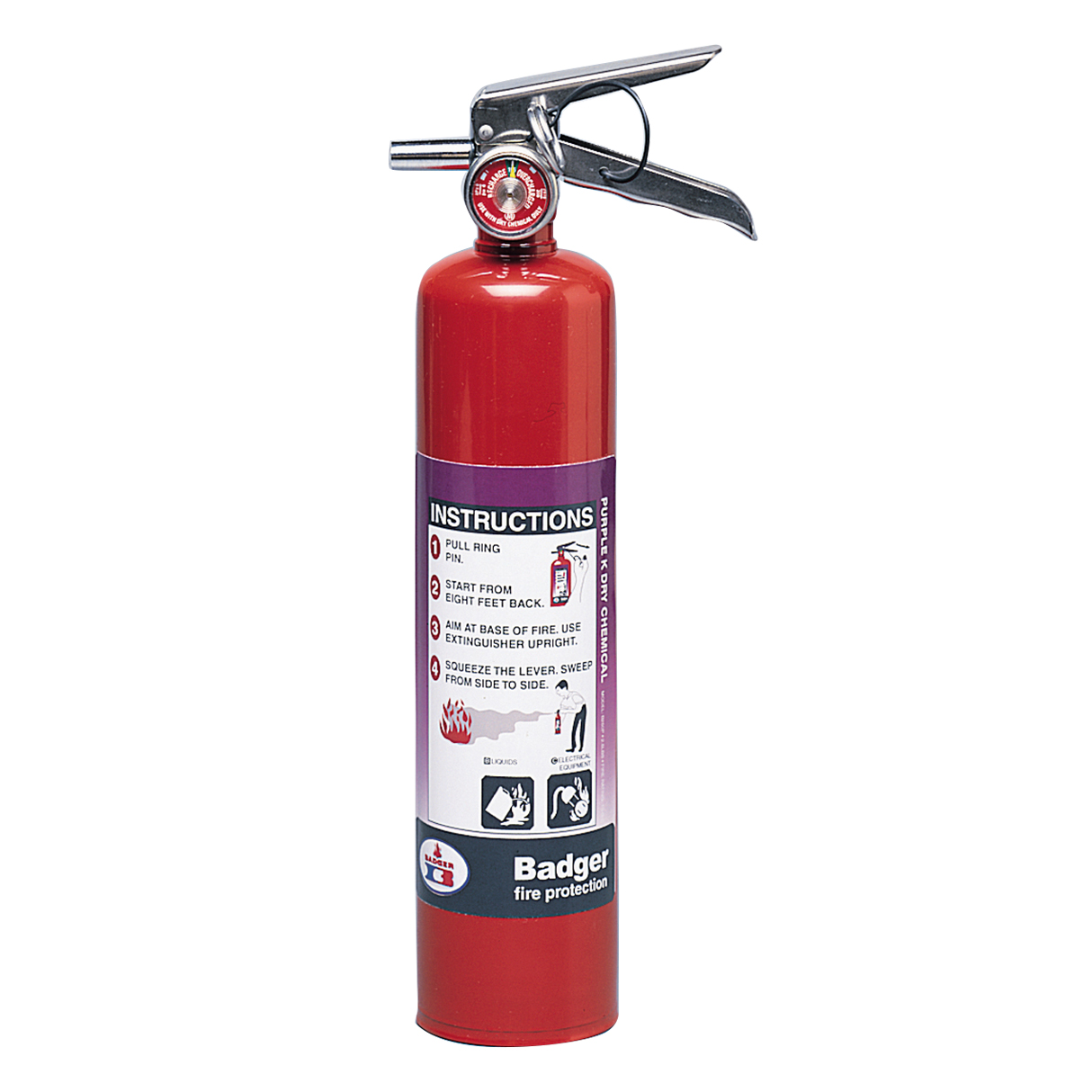

Badger Extra Purple K Dry Chemical Stored Pressure Fire Extinguishers B250P
B250P


For high hazard Class B and C fires

Size
2.50
UL Rating
10-B:C
Agent
Purple K
Product Line
Badger Extra Purple K

Badger’s potassium bicarbonate Purple K dry chemical stored pressure fire extinguishers are designed for use on high hazard types of Class B and C fires.

Purple K is generally superior to other dry chemicals on Class B fires, making these extinguishers ideal for use in industrial and commercial premises where a flammable liquid or gas fire risks exist.

The extinguishers can be mounted on any flat vertical surface with a wall hook or supplied with an optional strap bracket.

  • Chrome plated brass valve

  • Stainless steel handle and lever

  • Steel cylinder and internal siphon tube

  • Six year warranty

  • Large loop stainless steel pull pins with tether

  • 12 year periodic hydrostatic test interval

  • Heavy-duty hose with plated brass hex fitting

  • UL Listed and USCG Approved

  • Easy-to-read two-piece nameplates

Specifications

MODEL / SKU: B250P
PART NUMBER : 23485
WHEEL TYPE : n/a
CAPACITY (lb.): 2.5
CAPACITY (gal): n/a
CAPACITY (kg): 1.1
CAPACITY (liter): n/a
UL FIRE RATING: 10-B:C
AGENT TYPE: Purple K
CYLINDER MATERIAL: Steel
kidde: Plated Brass
HANDLE/LEVER MATERIAL: Stainless Steel
EXPELLANT: Nitrogen
Operating Pressure @ 70° F: 195
TEMPERATURE RANGE (° F): -40 to 120
TEMPERATURE RANGE (° C): -40.0 to 48.9
AGENT FLOW RATE (lb/sec): 0.31
AGENT FLOW RATE (kg/sec): 0.14
NOM. DISCHARGE TIME (sec): 9.5
DISCHARGE RANGE (ft.): 10.0 to 15.0
DISCHARGE RANGE (m): 3.0 to 4.6
UNIT HEIGHT (in.): 14.87
UNIT HEIGHT (cm): 37.8
UNIT WIDTH (in.): 5.5
UNIT WIDTH (cm): 14.0
UNIT DEPTH (in.): 3
UNIT DEPTH (cm): 7.6
SHIPPING WEIGHT (lb.): 5.8
SHIPPING WEIGHT (kg): 2.6
USCG APPROVAL: Type B:C, Size I
RECHARGE: n/a
Warranty: 6 years
Hazaard Type A: n/a
Hazaard Type B: B
Hazaard Type C: C
Hazaard Type D: n/a
Hazaard Type K: n/a

This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.

Badger’s potassium bicarbonate Purple K dry chemical stored pressure fire extinguishers are designed for use on high hazard types of Class B and C fires.

Purple K is generally superior to other dry chemicals on Class B fires, making these extinguishers ideal for use in industrial and commercial premises where a flammable liquid or gas fire risks exist.

The extinguishers can be mounted on any flat vertical surface with a wall hook or supplied with an optional strap bracket.

  • Chrome plated brass valve

  • Stainless steel handle and lever

  • Steel cylinder and internal siphon tube

  • Six year warranty

  • Large loop stainless steel pull pins with tether

  • 12 year periodic hydrostatic test interval

  • Heavy-duty hose with plated brass hex fitting

  • UL Listed and USCG Approved

  • Easy-to-read two-piece nameplates

Specifications

MODEL / SKU: B250P
PART NUMBER : 23485
WHEEL TYPE : n/a
CAPACITY (lb.): 2.5
CAPACITY (gal): n/a
CAPACITY (kg): 1.1
CAPACITY (liter): n/a
UL FIRE RATING: 10-B:C
AGENT TYPE: Purple K
CYLINDER MATERIAL: Steel
kidde: Plated Brass
HANDLE/LEVER MATERIAL: Stainless Steel
EXPELLANT: Nitrogen
Operating Pressure @ 70° F: 195
TEMPERATURE RANGE (° F): -40 to 120
TEMPERATURE RANGE (° C): -40.0 to 48.9
AGENT FLOW RATE (lb/sec): 0.31
AGENT FLOW RATE (kg/sec): 0.14
NOM. DISCHARGE TIME (sec): 9.5
DISCHARGE RANGE (ft.): 10.0 to 15.0
DISCHARGE RANGE (m): 3.0 to 4.6
UNIT HEIGHT (in.): 14.87
UNIT HEIGHT (cm): 37.8
UNIT WIDTH (in.): 5.5
UNIT WIDTH (cm): 14.0
UNIT DEPTH (in.): 3
UNIT DEPTH (cm): 7.6
SHIPPING WEIGHT (lb.): 5.8
SHIPPING WEIGHT (kg): 2.6
USCG APPROVAL: Type B:C, Size I
RECHARGE: n/a
Warranty: 6 years
Hazaard Type A: n/a
Hazaard Type B: B
Hazaard Type C: C
Hazaard Type D: n/a
Hazaard Type K: n/a

This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
