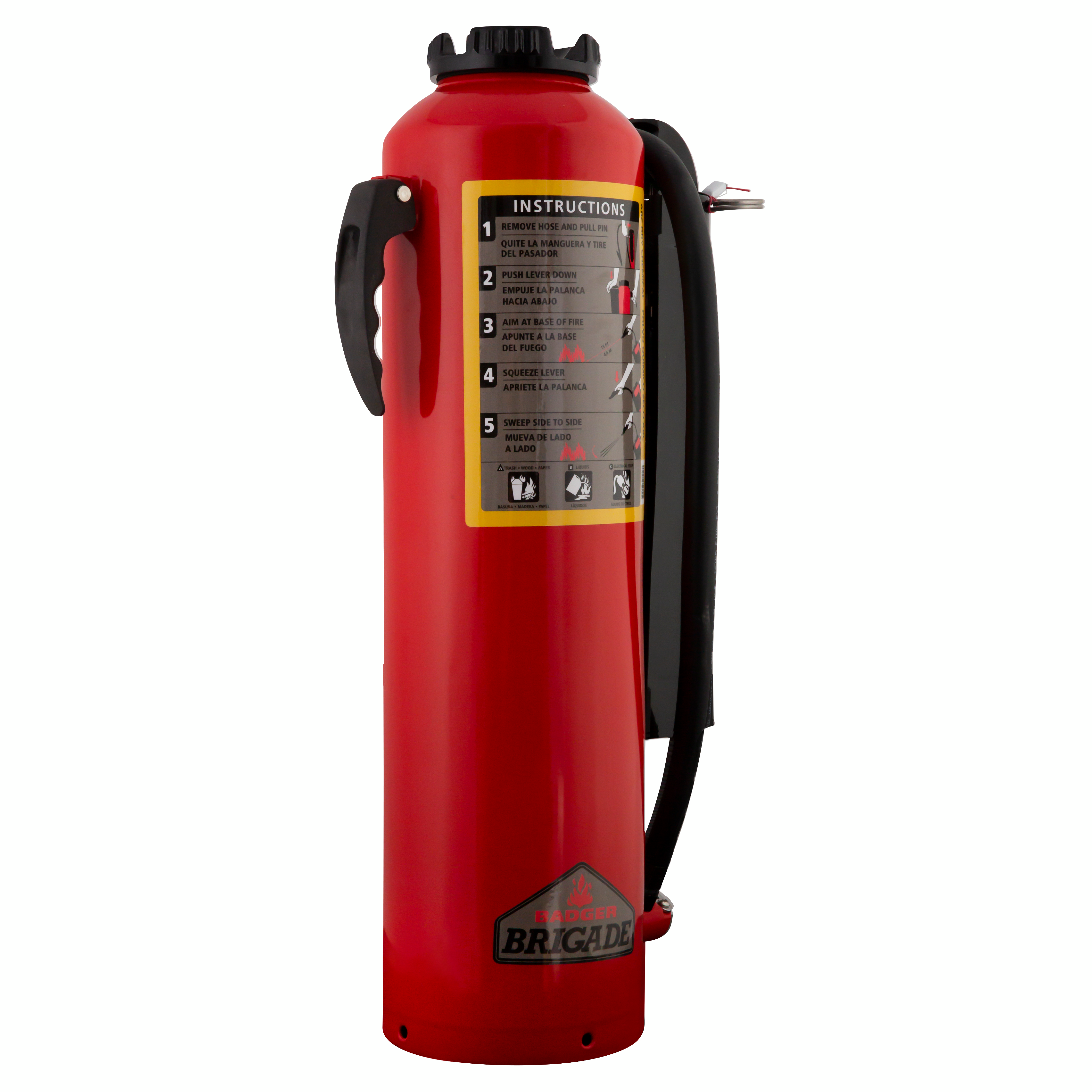

Badger Brigade Carbon Dioxide, Cartridge-Operated Fire Extinguisher B-20-A-1
B-20-A-1
The professional’s choice for carbon dioxide expellant cartridges. Suitable for Class B and C fires.
Badger Brigade extinguishers are the most effective cartridgeoperated models in the industry. When fire conditions demand that firefighters have the very best in portable fire extinguisher performance, they choose the Brigade.
Professional firefighters understand that Brigade cartridge operated extinguisher designs can extinguish various fire situations that stored pressure models cannot. It is rapidly becoming the number one choice of professionals, especially when high hazard fires demand fast, effective and reliable response.
The Brigade line offers the very best in firefighting performance and usability. It is available with ABC Multipurpose, BC Regular or Purple-K dry chemical to address industrial fire hazards.
-
Wide choice with 12 models available
-
Fitted with low maintenance swivel discharge nozzle to accommodate both left and right-handed operators
-
Designed with more extinguishing agent for higher fire ratings, longer range, extended discharge times and higher flow rates
-
Stainless steel cartridge guard and ring pins for extended life
-
UL Listed and USCG Approved
-
Full 360° attachment welds for added strength and better corrosion resistance
-
12 year product warranty
Specifications
MODEL / SKU: | B-20-A-1 |
PART NUMBER : | 466527 |
WHEEL TYPE : | n/a |
CAPACITY (lb.): | 21 |
CAPACITY (gal): | n/a |
CAPACITY (kg): | 9.53 |
CAPACITY (liter): | n/a |
UL FIRE RATING: | 10-A:60-B:C |
AGENT TYPE: | Multipurpose ABC (90% MAP) |
CYLINDER MATERIAL: | Steel |
kidde: | n/a |
HANDLE/LEVER MATERIAL: | n/a |
EXPELLANT: | CO2 |
Operating Pressure @ 70° F: | n/a |
TEMPERATURE RANGE (° F): | -40 to 120 |
TEMPERATURE RANGE (° C): | -40.0 to 48.9 |
AGENT FLOW RATE (lb/sec): | 1.03 |
AGENT FLOW RATE (kg/sec): | .47 |
NOM. DISCHARGE TIME (sec): | 20 to 24 |
DISCHARGE RANGE (ft.): | 15 to 30 |
DISCHARGE RANGE (m): | 4.57 to 9.14 |
UNIT HEIGHT (in.): | 23.6 |
UNIT HEIGHT (cm): | 59.94 |
UNIT WIDTH (in.): | 11.25 |
UNIT WIDTH (cm): | 28.58 |
UNIT DEPTH (in.): | 6.25 |
UNIT DEPTH (cm): | 15.77 |
SHIPPING WEIGHT (lb.): | 45.5 |
SHIPPING WEIGHT (kg): | 20.64 |
USCG APPROVAL: | Type A Size II
Type B:C Size III |
RECHARGE: | |
Warranty: | 12 years |
Hazaard Type A: | A |
Hazaard Type B: | B |
Hazaard Type C: | C |
Hazaard Type D: | n/a |
Hazaard Type K: | n/a |
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
