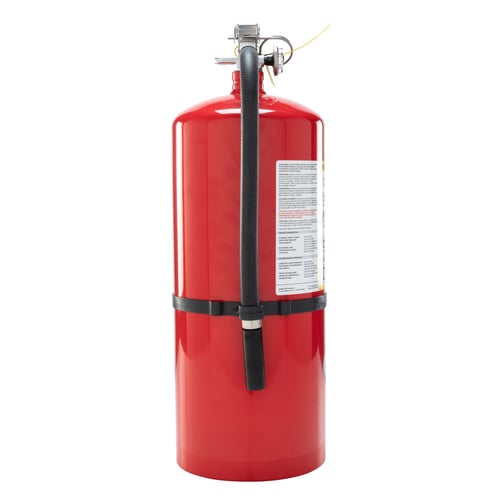

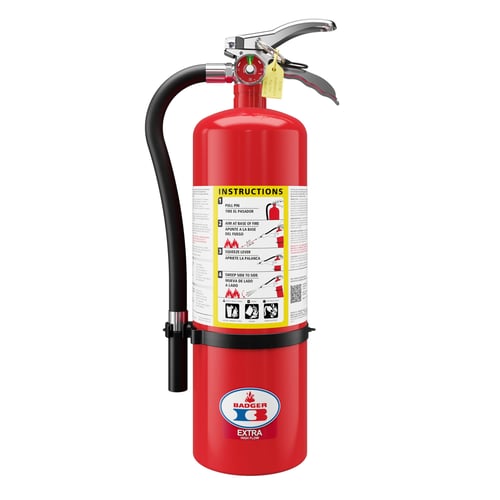

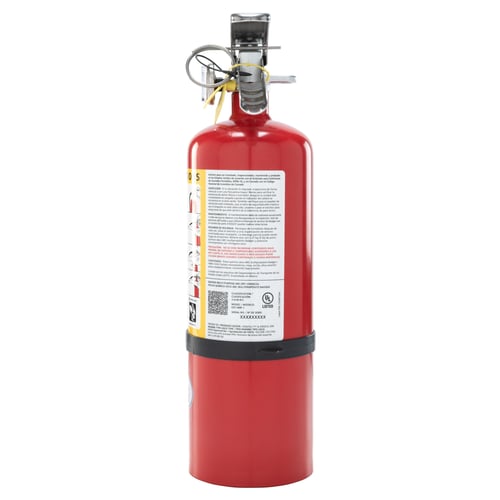

Multipurpose ABC Dry Chemical Fire Extinguisher
EXT-20MP-1Suitable for Class A, B and C fires.
Multipurpose agent contains 90% M.A.P.
Chrome plated brass valves
Stainless steel handles and levers
Large loop stainless steel pull pins with tether
Images are representative only.
Actual product may vary slightly.
Specifications
| Agent charge | Multipurpose ABC (90% MAP) |
| Brackets included | UB-20 Optional |
| Cylinder | Steel |
| Diameter x height | 9.25 inches x 21.13 inches |
| Discharge range | 16.0 to 20.0 |
| Discharge time | 20 sec |
| Govt agency approved | USCG & DOT |
| Model | EXT-20MP-1 |
| Operating pressure | 195 |
| Single use or rechargeable | Rechargable |
| U l rating | 6-A:120-B:C |
| Unit weight average | 20 lb |
| Valve handle lever | Stainless Steel |
| Warranty | 6 year limited |
The Badger Extra multipurpose dry chemical line of fire extinguishers are economical and extremely versatile. They are ideal for tackling the majority of fire risks typically found in commercial, industrial and domestic applications. Badger dry chemical extinguishing agent formulations contain the highest percentage of essential base ingredients found in the fire extinguisher industry. “Multipurpose” agent models are suitable for use on Class A, B and C fires. Badger Extra models offer compliance and protection with premium features.
- Multipurpose agent contains 90% M.A.P.
- Chrome plated brass valves
- Stainless steel handles and levers
- Large loop stainless steel pull pins with tether
- Steel cylinder and internal siphon tube
- Plated brass hose couplings with hex connection fitting
- Rugged heavy-duty agent discharge hose assemblies
- UL Listed and USCG Approved—Meets D.O.T. requirements
- 12 year periodic hydrostatic test interval
- Six year warranty
- Easy-to-read two-piece nameplates
Product Documentation
Specifications
| Agent charge | Multipurpose ABC (90% MAP) |
| Brackets included | UB-20 Optional |
| Cylinder | Steel |
| Diameter x height | 9.25 inches x 21.13 inches |
| Discharge range | 16.0 to 20.0 |
| Discharge time | 20 sec |
| Govt agency approved | USCG & DOT |
| Model | EXT-20MP-1 |
| Operating pressure | 195 |
| Single use or rechargeable | Rechargable |
| U l rating | 6-A:120-B:C |
| Unit weight average | 20 lb |
| Valve handle lever | Stainless Steel |
| Warranty | 6 year limited |
Product Documentation
The Badger Extra multipurpose dry chemical line of fire extinguishers are economical and extremely versatile. They are ideal for tackling the majority of fire risks typically found in commercial, industrial and domestic applications. Badger dry chemical extinguishing agent formulations contain the highest percentage of essential base ingredients found in the fire extinguisher industry. “Multipurpose” agent models are suitable for use on Class A, B and C fires. Badger Extra models offer compliance and protection with premium features.
- Multipurpose agent contains 90% M.A.P.
- Chrome plated brass valves
- Stainless steel handles and levers
- Large loop stainless steel pull pins with tether
- Steel cylinder and internal siphon tube
- Plated brass hose couplings with hex connection fitting
- Rugged heavy-duty agent discharge hose assemblies
- UL Listed and USCG Approved—Meets D.O.T. requirements
- 12 year periodic hydrostatic test interval
- Six year warranty
- Easy-to-read two-piece nameplates
BADGER EXTRA
Badger Extra fire extinguishers contain premium hardware features. They are ideal for tackling many fire risks typically found in commercial, industrial and domestic applications. Badger Extra models offer compliance and protection with premium features.
ABOUT BADGER FIRE
Badger fire protection products have been manufactured for more than 100 years. Located in Mebane, North Carolina, Badger offers a comprehensive range of industrial-grade fire extinguishers, dry chemical fire suppression systems and Range Guard®, the nation’s first commercial kitchen wet chemical fire suppression system. Badger designs and manufactures industrial-grade fire extinguishers that solve customer challenges while setting the standard in fire protection performance and value.
