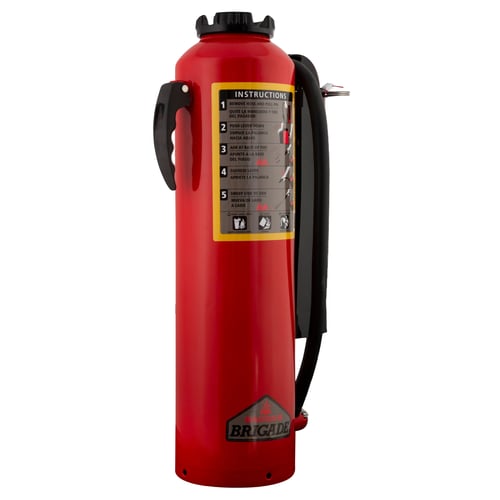

Multipurpose ABC Dry Chemical OCU Fire Extinguisher
B-20-A-1The professional’s choice for carbon dioxide expellant cartridges.
Wide choice with 12 models available
Fitted with low maintenance swivel discharge nozzle to accommodate both left and right-handed operators
Designed with more extinguishing agent for higher fire ratings, longer range, extended discharge times and higher flow rates
Stainless steel cartridge guard and ring pins for extended life
Images are representative only.
Actual product may vary slightly.
Specifications
| Agent charge | Multipurpose ABC (90% MAP) |
| Brackets included | B-20 Optional |
| Cylinder | Steel |
| Diameter x height | 11.25 in x 23.6 in |
| Discharge range | 15 to 30 |
| Discharge time | 20 to 24 |
| Govt agency approved | USCG & DOT |
| Model | B-20-A-1 |
| Operating pressure | 195 |
| Single use or rechargeable | Rechargable |
| U l rating | 10-A:60-B:C |
| Unit weight average | 21 lb |
| Warranty | 12 year limited |
Badger Brigade extinguishers are the most effective cartridge operated models in the industry. When fire conditions demand that firefighters have the very best in portable fire extinguisher performance, they choose the Brigade. Professional firefighters understand that Brigade cartridge operated extinguisher designs can extinguish various fire situations that stored pressure models cannot. It is rapidly becoming the number one choice of professionals, especially when high hazard fires demand fast, effective and reliable response. The Brigade line offers the very best in firefighting performance and usability. It is available with ABC Multipurpose, BC Regular or Purple-K dry chemical to address industrial fire hazards.
- Wide choice with 12 models available
- Fitted with low maintenance swivel discharge nozzle to
- accommodate both left and right-handed operators
- Designed with more extinguishing agent for higher fire ratings, longer range, extended discharge times and higher flow rates
- Stainless steel cartridge guard and ring pins for extended life
- UL Listed and USCG Approved
- Full 360° attachment welds for added strength and better corrosion resistance
- 12 year product warranty
Product Documentation
Specifications
| Agent charge | Multipurpose ABC (90% MAP) |
| Brackets included | B-20 Optional |
| Cylinder | Steel |
| Diameter x height | 11.25 in x 23.6 in |
| Discharge range | 15 to 30 |
| Discharge time | 20 to 24 |
| Govt agency approved | USCG & DOT |
| Model | B-20-A-1 |
| Operating pressure | 195 |
| Single use or rechargeable | Rechargable |
| U l rating | 10-A:60-B:C |
| Unit weight average | 21 lb |
| Warranty | 12 year limited |
Product Documentation
Badger Brigade extinguishers are the most effective cartridge operated models in the industry. When fire conditions demand that firefighters have the very best in portable fire extinguisher performance, they choose the Brigade. Professional firefighters understand that Brigade cartridge operated extinguisher designs can extinguish various fire situations that stored pressure models cannot. It is rapidly becoming the number one choice of professionals, especially when high hazard fires demand fast, effective and reliable response. The Brigade line offers the very best in firefighting performance and usability. It is available with ABC Multipurpose, BC Regular or Purple-K dry chemical to address industrial fire hazards.
- Wide choice with 12 models available
- Fitted with low maintenance swivel discharge nozzle to
- accommodate both left and right-handed operators
- Designed with more extinguishing agent for higher fire ratings, longer range, extended discharge times and higher flow rates
- Stainless steel cartridge guard and ring pins for extended life
- UL Listed and USCG Approved
- Full 360° attachment welds for added strength and better corrosion resistance
- 12 year product warranty
BADGER BRIGADE
When high-hazard fires demand immediate response, Badger Brigade cartridge operated fire extinguishers provide the ability to fight and suppress fires quickly and effectively. Brigade hand portables are the fire extinguishers of choice for high-risk industrial applications such as petroleum, oil and gas (POG), chemical, mining, power plants and aviation. Their cartridge-operated design delivers superior firefighting performance and usability, increased reliability and in-the-field recharging for rapid response and ease of service. The Brigade line is available with ABC Multipurpose, BC Dual-Purpose, or Purple-K dry chemical to address a wide range of industrial fire hazards. Their field-proven industrial-grade construction can stand up to demanding environments and rough use providing years of reliable service and user safety.
ABOUT BADGER FIRE
Badger fire protection products have been manufactured for more than 100 years. Located in Mebane, North Carolina, Badger offers a comprehensive range of industrial-grade fire extinguishers, dry chemical fire suppression systems and Range Guard®, the nation’s first commercial kitchen wet chemical fire suppression system. Badger designs and manufactures industrial-grade fire extinguishers that solve customer challenges while setting the standard in fire protection performance and value.
