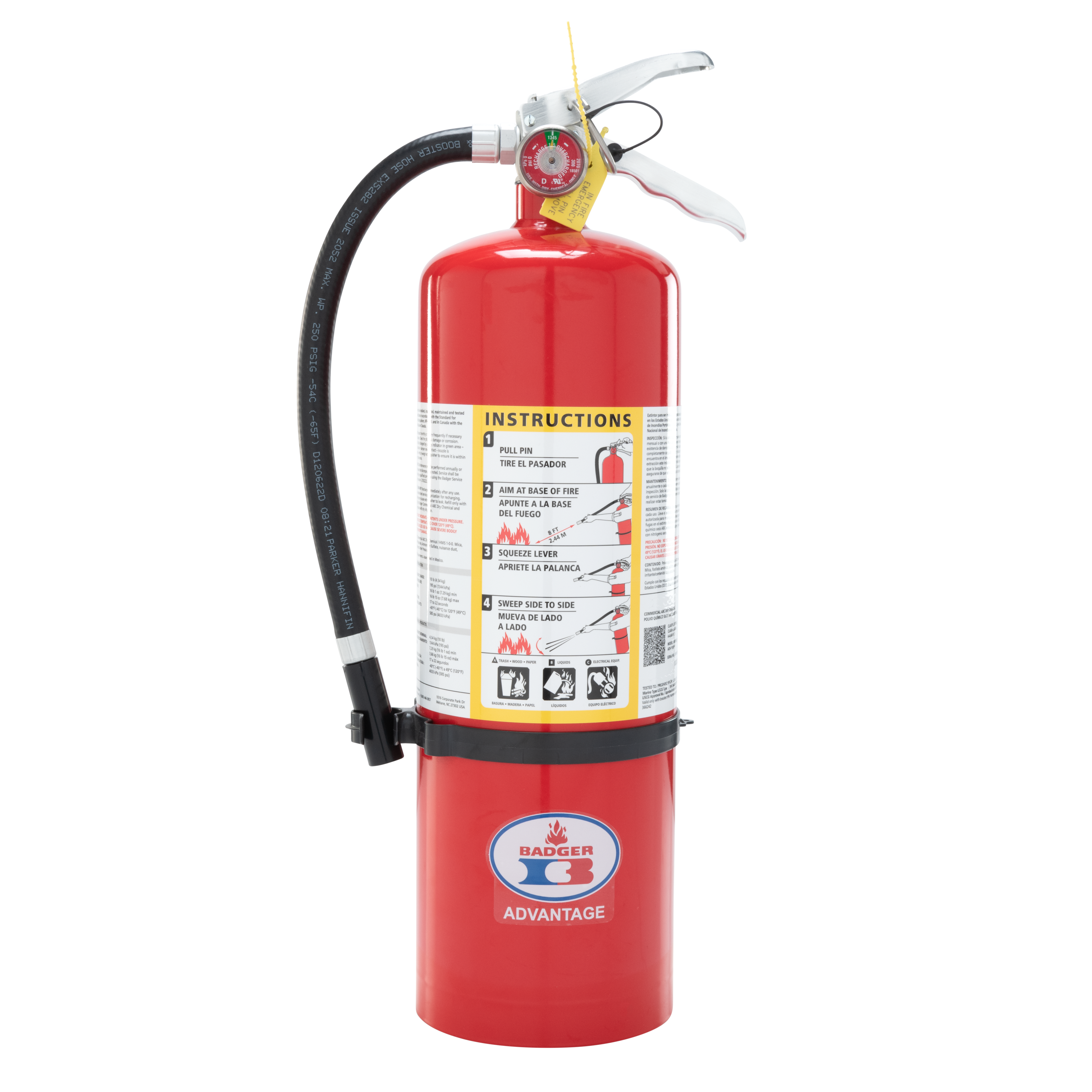

Badger™ Advantage Multipurpose Dry Chemical Fire Extinguisher ADV-10 ADV-10
Badger™ Advantage Multipurpose Dry Chemical Fire Extinguisher ADV-10
ADV-10
A fire extinguisher line offering exceptional quality and value with some very unique service related benefits. Suitable for Class A, B, and C fires.
The Badger ADVANTAGE fire extinguisher line offers exceptional quality and value with some very unique service related benefits.
These rechargeable metal valve fire extinguisher models are ideally suited for addressing a wide range of DOT, USCG and commercial application market needs.
-
Large, easy-to-read two piece color coded nameplates
-
Ergonomically designed handle and lever for ease of use
-
Large loop pull pins ensure quick and easy removal, even with gloves on
-
Only extinguisher line featuring both aluminum and steel agent cylinders
-
6 year product warranty
-
Common valve stem and neck seal minimize necessary service parts
-
Heavy square thread on valve designed for added ease of installation
-
Larger cylinder neck opening to better accommodate recharge
-
Valve threads are indexed to accommodate and permit field replacement
-
All models feature heavy duty threaded metal siphon tubes
Specifications
| MODEL / SKU: | ADV-10 |
| PART NUMBER : | 21007867 |
| WHEEL TYPE : | n/a |
| CAPACITY (lb.): | 10 |
| CAPACITY (gal): | n/a |
| CAPACITY (kg): | 4.5 |
| CAPACITY (liter): | n/a |
| UL FIRE RATING: | 4-A:60-B:C |
| AGENT TYPE: | Commercial ABC (55% MAP) |
| CYLINDER MATERIAL: | Steel |
| kidde: | Aluminum |
| HANDLE/LEVER MATERIAL: | Aluminum |
| EXPELLANT: | Nitrogen |
| Operating Pressure @ 70° F: | 195 |
| TEMPERATURE RANGE (° F): | -40 to 120 |
| TEMPERATURE RANGE (° C): | -40.0 to 48.9 |
| AGENT FLOW RATE (lb/sec): | .60 |
| AGENT FLOW RATE (kg/sec): | .27 |
| NOM. DISCHARGE TIME (sec): | 21 +-/2.0 |
| DISCHARGE RANGE (ft.): | 16.0-20.0 |
| DISCHARGE RANGE (m): | 4.9-6.1 |
| UNIT HEIGHT (in.): | 19.6 |
| UNIT HEIGHT (cm): | 49.7 |
| UNIT WIDTH (in.): | 8 |
| UNIT WIDTH (cm): | 20.32 |
| UNIT DEPTH (in.): | 5.25 |
| UNIT DEPTH (cm): | 13.23 |
| SHIPPING WEIGHT (lb.): | 17.5 |
| SHIPPING WEIGHT (kg): | 7.94 |
| USCG APPROVAL: | Type B:C, Size I |
| RECHARGE: | |
| Warranty: | 6 years |
| Hazaard Type A: | A |
| Hazaard Type B: | B |
| Hazaard Type C: | C |
| Hazaard Type D: | n/a |
| Hazaard Type K: | n/a |
This information is subject to change without notice. Badger Fire Protection disclaims any liability for any errors or misinterpretations of the information contained therein. Contact Badger Fire Protection for your local distributor for assistance.
